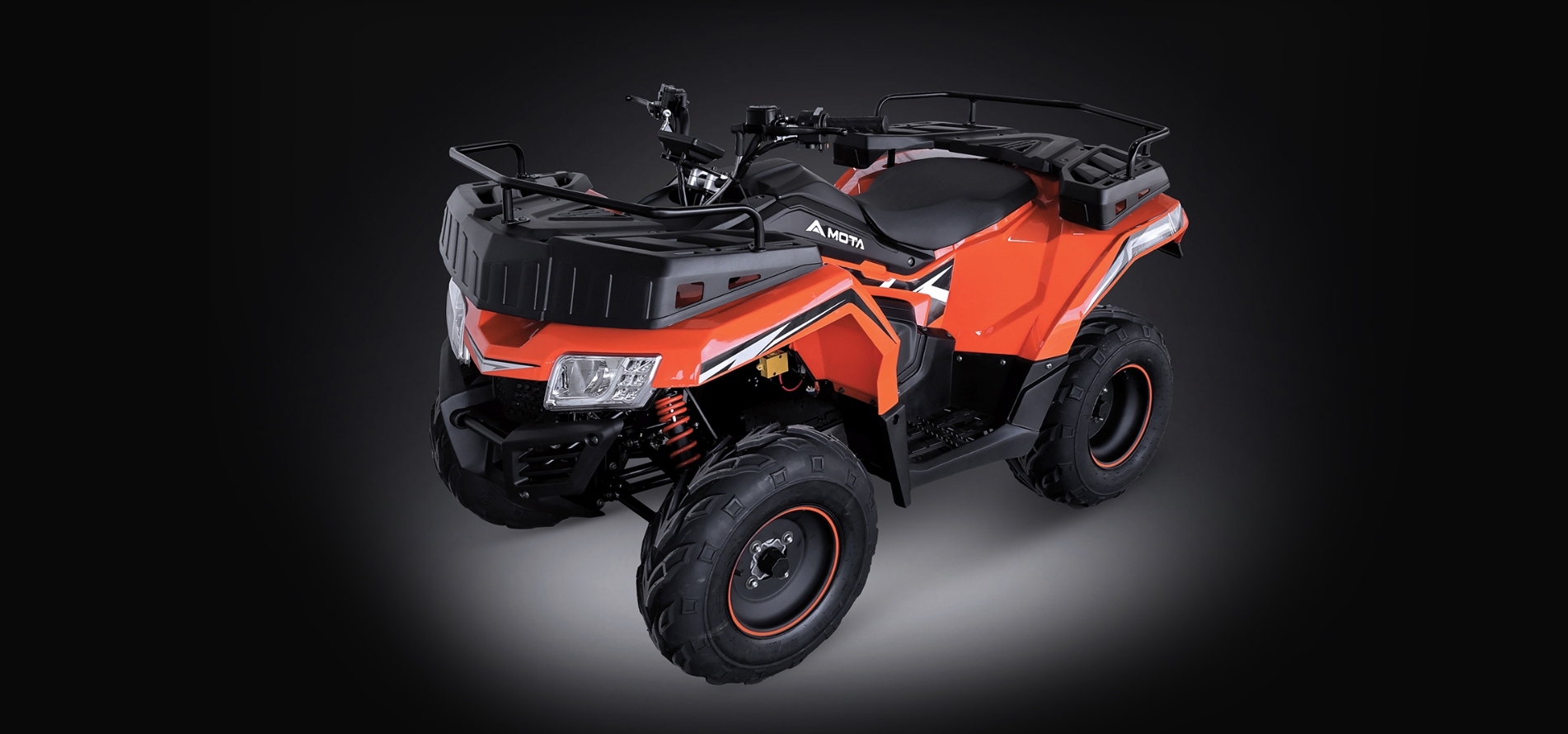

e-ATV |
|
| L×W×H（mm) | 1950×1060×1100 |
|
| Seat Height (mm) | 830 |
|
| Wheelbase(mm) | 1150 |
|
| Ground Clearance(mm) | 130 |
|
| Kerb Weight(kg) | 200 |
|
| Starter Type | Smart Key |
|

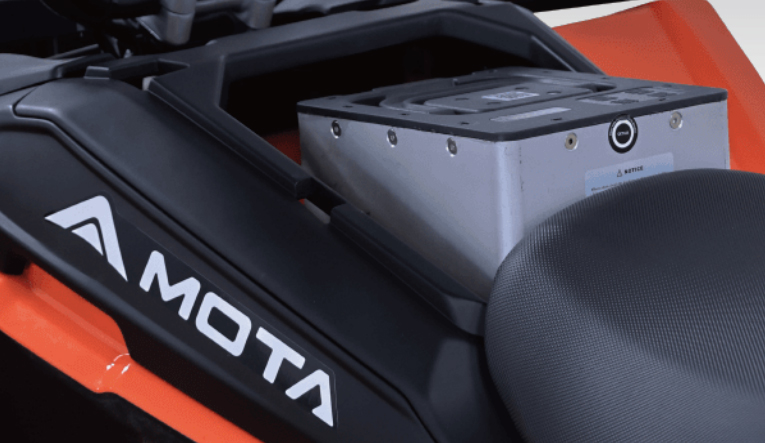

| Battery Type＊ | NCM (72V 35Ah) |
|
| Battery Quantity | 2 batteries |
|
|
Driving Range, city (km) |
70 |
|
| Max, Speed, sustained (km/h) | 40 |
|
| Acceleration 0-40km/h (s) | 10 |
|

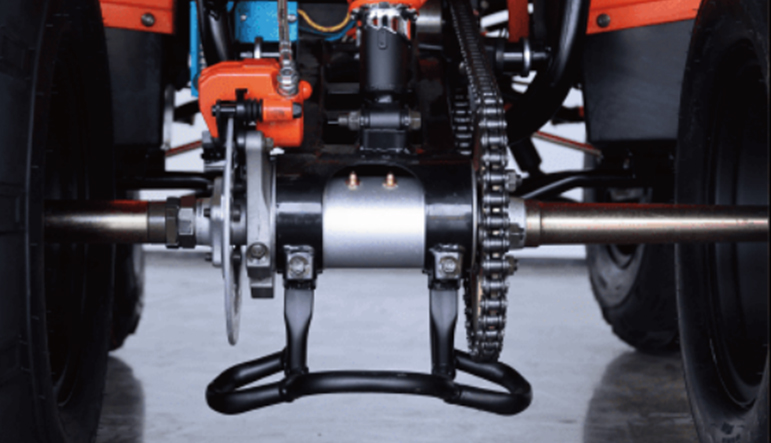

| Motor Type | Mid-drive Motor |
|
| Motor Rated Power(W) |
5000 |
|
| Max Torque (Nm) |
400 |
|
| Climb Gradient |
25° |
|
| Front Tire |
175 / 85-10 |
|
| Rear Tire |
255 / 60-10 |
|

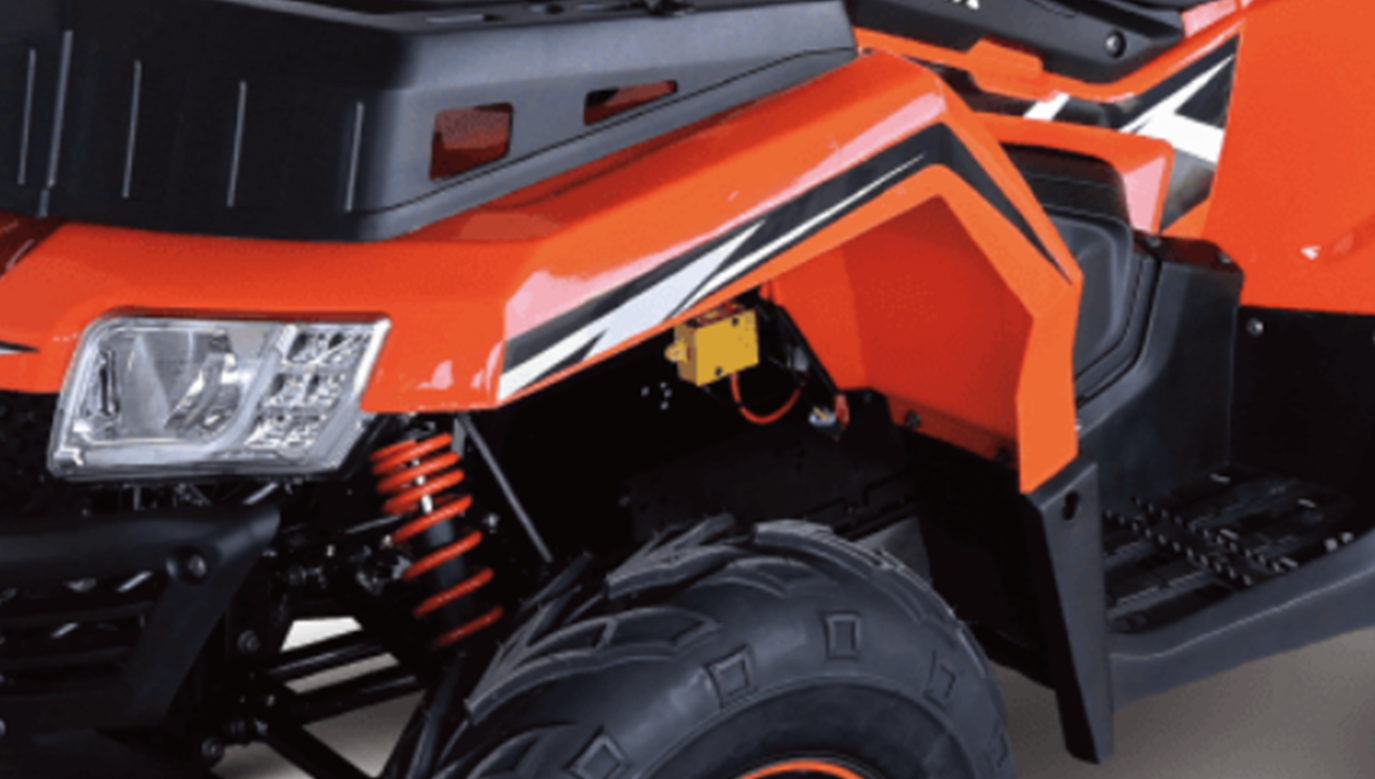

| Front Suspension |
Hydraulic damper, 75mm travel |
|
| Rear Suspension |
Hydraulic damper, 85mm travel |
|
| Brake System |
Disc Brake |
|
| Display Type |
LED |
|
| Anti-theft |
Yes |
|
| Bluetooth Connectivity | Yes |
|
